Swagger使用说明

功能简介

Swagger是一套治理API的工具，根据OAS（Open Api Specification）这个描述API的规则，实现API盘点、测试以及归档等功能。目前在wisteria功能中，可以在嵌入很少的侵入代码的情况下实现API的盘点功能——我们可以获取到一个最新的，随时和代码保持同步的API文档。

使用步骤

1. 引入工程依赖

   compile “io.springfox:springfox-swagger2:2.9.2”

2. 添加API文档支持

在项目中，采用开开源的springfox支持API信息的采集。

(1)非Spring MVC项目(可以跳过该步骤)

(2)Spring MVC项目

需要在MvcConfig中增加@EnableSwagger2注解，同时注入BeanDocket即可。

@Configuration
@EnableSwagger2
@ComponentScan(basePackages = "com.xxx.frontend",
    nameGenerator = FullBeanNameGenerator.class)
@EnableWebMvc
@EnableAspectJAutoProxy(proxyTargetClass = true)
public class MvcConfig extends WebMvcConfigurerAdapter{
    @Bean
    public Docket apiDocket() {
        return new Docket(DocumentationType.SWAGGER_2)
                .enable(swaggerStatus)
                .apiInfo(createDefaultApiInfo())
                .groupName(appName + "frontend")
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.xxx"))
                .paths(PathSelectors.any())
                .build();
    }
    private ApiInfo createDefaultApiInfo(){
        return new ApiInfoBuilder()
                .title(appName)
                .description(appName + " frontend api 文档")
                .termsOfServiceUrl("http://www.xxx.cn")
                .build();
    }
}

(3)添加API描述

Springfox定义了一系列的注解，用于更好的描述各个API的内容，包括输入输出以及字段类型和限制等。如果不添加这些内容，API的信息也是可以获取到的，只是不是很全面而已。

描述Controller的注解：

@Api describes the whole controller
@ApiOperation is used for description on a methods level
@ApiParam is used for method parameters

示例：

@RestController
@RequestMapping("/v2/persons/")
@Api(description = "Set of endpoints for Creating, Retrieving, Updating and Deleting of Persons.")
public class PersonController {
    private PersonService personService;
    @RequestMapping(method = RequestMethod.GET, path = "/{id}", produces = "application/json")
    @ApiOperation("Returns a specific person by their identifier. 404 if does not exist.")
    public Person getPersonById(@ApiParam("Id of the person to be obtained. Cannot be empty.")
                                    @PathVariable int id) {
        return personService.getPersonById(id);
    }
}

描述Model的注解：

示例：

{
    @ApiModel(description = "Class representing a person tracked by the application.")
    public class Person {
    @ApiModelProperty(notes = "Unique identifier of the person. No two persons can have the same id.", example = "1", required = true, position = 0)
    private int id;
    @ApiModelProperty(notes = "First name of the person.", example = "John", required = true, position = 1)
    private String firstName;
    @ApiModelProperty(notes = "Last name of the person.", example = "Doe", required = true, position = 2)
    private String lastName;
    @ApiModelProperty(notes = "Age of the person. Non-negative integer", example = "42", position = 3)
    private int age;

    // … Constructor, getters, setters, ...
}

支持JSR-303

@NotNull 不为空
@NotBlank 不为空 不为空字符串
@Size(min = 1, max = 20) 字符串长度范围
@Min(0) 最小值最大值设置
@Max(100)
@Pattern(regexp = “[SOME REGULAR EXPRESSION]”) 正则表达式设置

做到上面几步就可以在api文档中看到效果了。类似如下：

或者采用不同的展示模板：

Springfox原理

Springfox生成Api文档的原理是，通过获取Spring上下文中@Controller以及@RequestMapping注解的Bean的信息，然后通过层层解析，最终按照Swagger的标准生成Api文档而得来的。

从RequestMappingHandlerMapping的一段源码上面看，就能够理解在@Controller和@ResquestMapping注解到一个Bean或其属性上之后，Spring做了什么，是如何用HandlerMapping将Http请求映射到响应的Bean的方法上的，以及是如何采用HandlerAdapter来处理Http请求的。

RequestMappingHandlerMapping中的两个关键方法：

/**
 * {@inheritDoc}
 * Expects a handler to have a type-level @{@link Controller} annotation.
 */
@Override
protected boolean isHandler(Class<?> beanType) {
    return (AnnotatedElementUtils.hasAnnotation(beanType, Controller.class) ||
            AnnotatedElementUtils.hasAnnotation(beanType, RequestMapping.class));
}

private RequestMappingInfo createRequestMappingInfo(AnnotatedElement element) {
    RequestMapping requestMapping = AnnotatedElementUtils.findMergedAnnotation(element, RequestMapping.class);
    RequestCondition<?> condition = (element instanceof Class ?
            getCustomTypeCondition((Class<?>) element) : getCustomMethodCondition((Method) element));
    return (requestMapping != null ? createRequestMappingInfo(requestMapping, condition) : null);
}

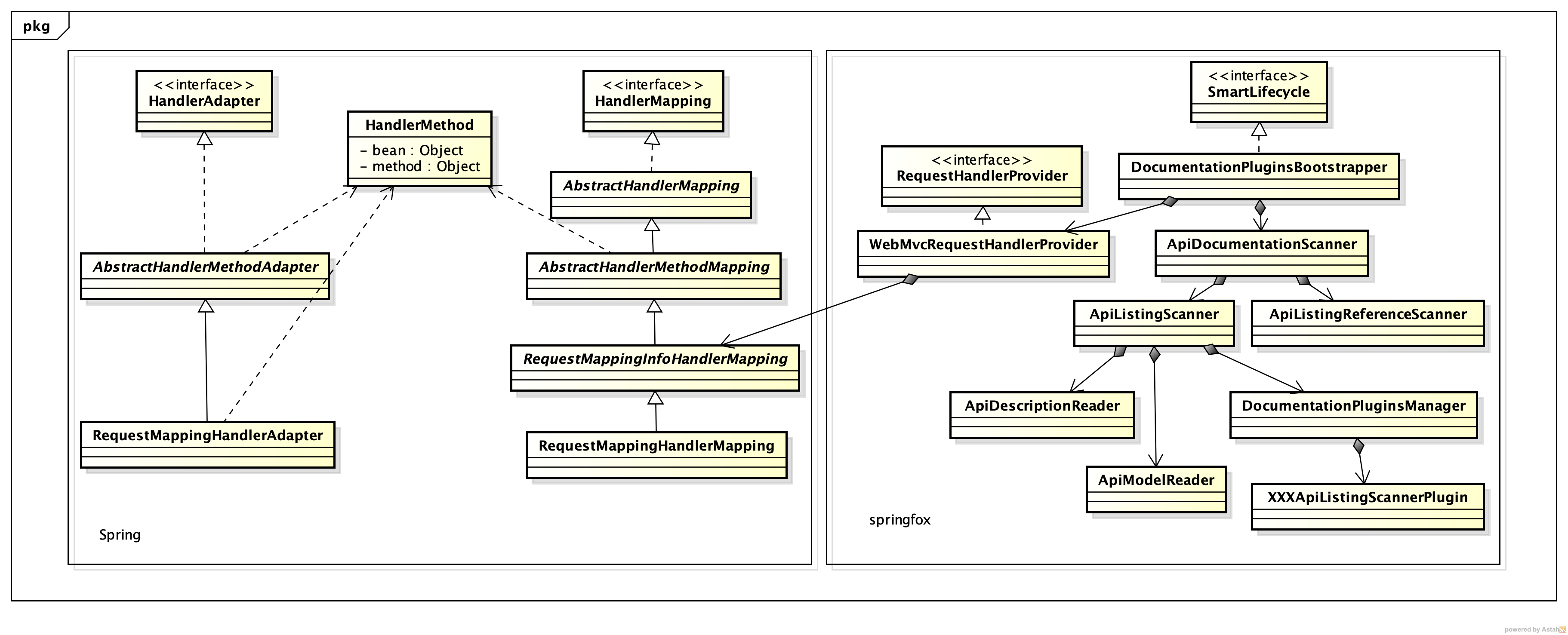

Springfox获取Controller Bean信息的类图：
